Optimize System Connectivity with...
The World’s Smallest 1553 In-Line Couplers!

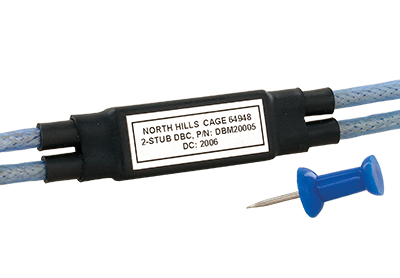

The new DBM series data bus couplers utilize the world’s smallest coupler housing body, at 1.1” (27.9 mm) long by 0.31” (7.9 mm) high, enabling more compact packaging with greater flexibility options for integrating harness assemblies with LRU’s on the aircraft, providing optimized system connectivity.
These couplers are available in one, two, three and four stub designs and can be ordered with internal termination as an option. Standard versions of the couplers include 12” of MIL-C-17 lead wire on all bus and stub configurations. Electrical performance meets or exceeds all DDC and industry requirements at operating temperatures between -55°C and +130°C. All isolation resistors are 1W and isolation transformers meet MIL-PRF-21038 requirements. Customer designs are available including additional stub/bus configurations and custom connectors.
Features include:
-
Flight Qualified
-
Small & Lightweight
- 100% Tested
- Can be Supplied as a Complete Harness According to Customer Specification
- -55°C to +130°C Operating Temperature Range
- 1 Watt Resistors
- Single or Multi-Stub
