Test/Lab

market-segments-content-img

Test & Verification



Data Device Corporation (DDC), the leader in high reliability data networking, power control and motion control technology for the aerospace and defense industry, offers boards, processor based solutions, and software for test and verification, system integration and simulation, and software/hardware development.DDC offers convenient solutions to convert MIL-STD-1553, ARINC 429, and Ethernet protocol in any direction, in real-time, without a host computer, enabling seamless and cost saving multi-protocol connectivity for test applications.



MIL-STD-1553, ARINC 429 & Ethernet Protocol Conversion



DDC offers convenient solutions to convert MIL-STD-1553, ARINC 429, and Ethernet protocol in any direction, in real-time, without a host computer, enabling seamless and cost saving multi-protocol connectivity for test applications.



market-segments-content-img

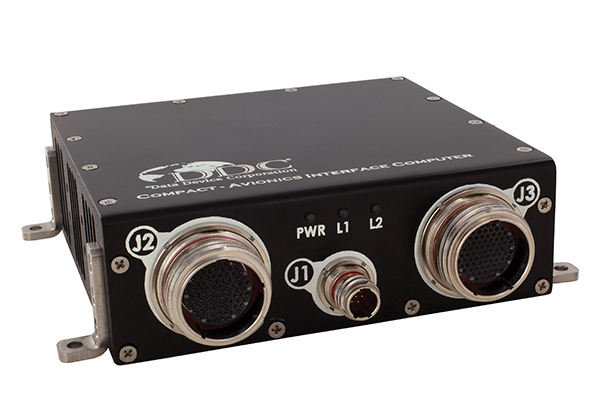

Avionics Interface Computer

Three modes of operation provide complete bridging capability for lab environments.

  • Remote Access Mode uses Ethernet as a virtual backplane between applications running on a host computer and 1553/429 interfaces located within the AIC, eliminating the need and cost of long cabling to onboard 1553/429 connections from the test lab.
  • Protocol Conversion Mode uses bridging SDK, which allows users to easily create embedded software on the AIC that will autonomously forward data between MIL-STD-1553, ARINC 429, and Ethernet interfaces.
  • Standalone Mode allows the AIC to operate as a user programmable computer system.

market-segments-content-img

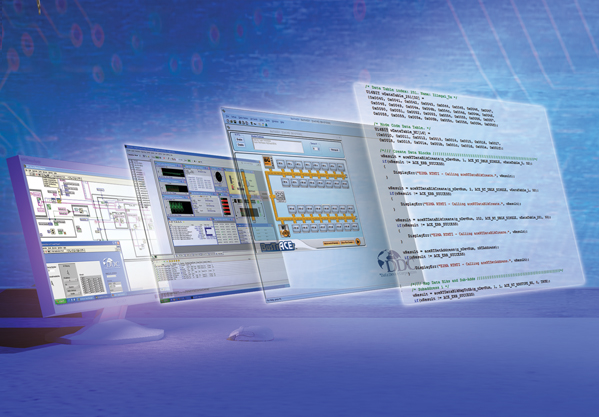

Software Solutions dataSIMS


Avionics Data Bus Test and Analysis Software

  • Accelerates development and deployment
  • Eliminates cost of learning and maintaining separate software programs
  • Easy-to-use and customize
  • Supports all data protocols and I/O formats

LABVIEW® & LABVIEW/LABWINDOWS® Real-Time Support Package


Easy and Efficient Development Software

  • Simple interface for quick startup and easy programming
  • Access real-time 1553/429/Synchro data using LabVIEW
  • Easily integrate data from different types of instruments and sensors
  • Create custom user interface from scratch or by modifying samples provided

BusTrACEr™


Data Bus Analyzer and Monitor Software

  • Generate or monitor live MIL-STD-1553 data without writing any code
  • Saves time and reduces development costs
  • Program in minutes with one-click ANSI 'C' source code generation
  • Rapid creation and setup of custom applications

Commercial Avionics Utilities


Data Bus Analyzer and Data Loader Software

  • Graphical ARINC 429 data bus analysis and simulation
  • Advanced filtering, message scheduling, and triggering
  • Graphical ARINC 615 data loader
  • Software interface to load data to and from airborne computers

market-segments-content-img

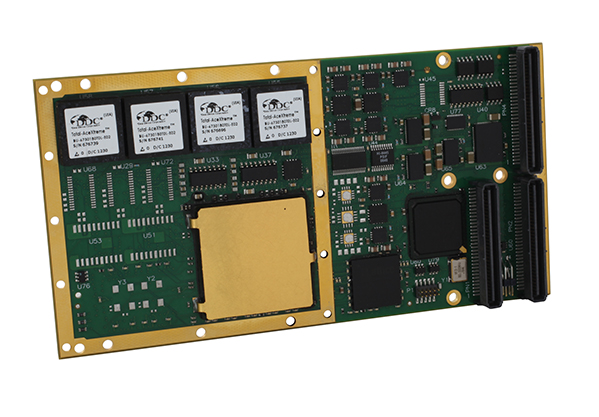

"Multi-Protocol Data Bus Boards

  • Multi-I/O (1553, 429, Serial, Discrete) - Test multiple protocols with one card
  • MIL-STD-1553 Multi-Function (BC + Multi-RT + MT) - Simplifies testing and saves procurement and assembly costs!
  • IRIG-B and External Time Clock - Synchronize all data to a common time source
  • IRIG-106 Chapter 10 - Records 1553 data in standard telemetry format
  • Error Injection - Send erroneous bus traffic to test for incorrect behavior
  • 1553 Reconstruction Mode - Record and playback bus traffic to reproduce unique system failures
  • Advanced Triggering - Easy-to-use event notification via software or external pins
  • Common API - Enables software reuse and prototyping"
