Return Loss Bridge

Version:

51100RLB, 51110RLB, 51120RLB, 51135RLB, 51150RLB, 52100RLB, 52110RLB, 52120RLB, 52135RLB, 52150RLB, 53100RLB, 53110RLB, 53120RLB, 53135RLB, 53150RLB, 71100RLB, 71110RLB, 71120RLB, 71135RLB, 71150RLB, 72100RLB, 72110RLB, 72120RLB, 72135RLB, 72150RLB, 73100RLB, 73110RLB, 73120RLB, 73135RLB, 73150RLB

Base Part #:

Return Loss Bridge

Package:

N/A

Lead Free Code:

B

Status:

Standard

Quantity:

Add to Quote Tech Support

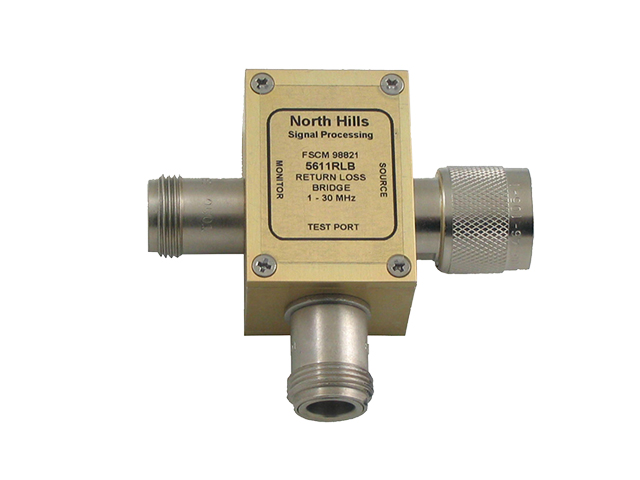

In communication circuits, maximum power transfer occurs when source and load impedance are matched. By relating it to a reference source impedance, the magnitude of a load impedance may, meaningfully, be expressed as “return loss.” North Hills Series RLB Return Loss Bridges interface with network analyzers to measure return loss of UTP cable and other balanced systems. There are models for balanced reference impedances from 100 to 150 ohm for either 50 or 75 ohm network analyzers, covering frequency ranges from 10kHz to 300MHz.

Benefits:

High-accuracy balanced impedance measurements
Easy interface with 50Ω impedance analyzers or LCR meters

Excellent Bridge directivity
Frequency range 0.01 to 300 MHz
100 to 150 ohm balanced impedances available

Datasheet

RLB Series Return Loss Bridges for UTP and Balanced Systems Data Sheets

Rev: 3 (2 Pages, 829.96 KB)

Overview

Beta Corporate Overview

Rev: 1 (6 Pages, 5.37 MB)

Product Catalog

DDC Product Catalog

Rev: 8 (84 Pages, 33.60 MB)
