Rad Hard EEPROM Memories

Transformers & Magnetics

DDC is a leader in high reliability transformer, magnetic and cable assembly solutions for the aerospace, defense, and space industries, with Beta Transformer and North Hills brands offering field proven magnetics solutions for the most demanding environments, including extreme temperature, shock, vibration, dust, fluid, and radiation.

Online Shop

DDC's online shop offers you the ability to purchase some of our most popular and widely used products with a credit card. The online shop currently offers a broad selection of MIL-STD-1553 data bus network testers, couplers & cables, along with wide band transformers, adapters & video isolation transformers.

Rad Hard EEPROM Memories

The Source...

for Rad Hard EEPROM Memories!

DDC will soon be the only source¹ for Rad Hard EEPROM

"Market leading memory components have been at the core of our business from the beginning. Not only do we continue to invest in the latest memory technologies, we protect the design investments of our customers by ensuring longevity of supply." Dan Veenstra, Business Unit Manager for DDC Space Microelectronics

European Space Agency (ESA) adds DDC as approved source for rad hard EEPROM memories (EPPL, issue 39)

Press Release

Learn More: EEPROM | Competitor Replacements | Articles & More Info

RAD-PAK® Solutions

DDC's radiation mitigation RAD-PAK^® Technology, offers best-in-class spot shielding, enabling DDC to deliver the latest commercially available microelectronics in a space qualified package, providing a reduced cost space grade solution. RAD-PAK-based solutions offer a total dose immunity of 100 krads or higher, and have been qualified by NASA, ESA, JAXA and thousands of missions for over 20 years without any flight failures.

EEPROM Memories

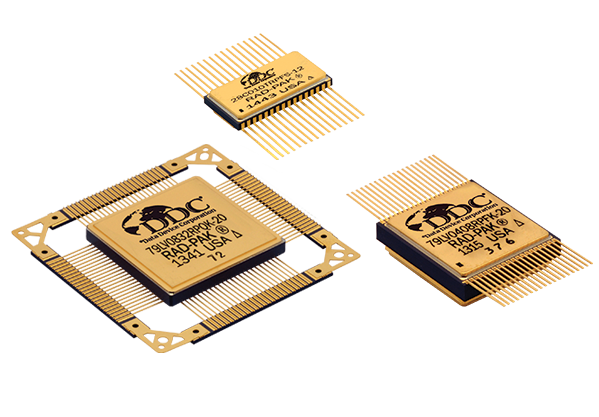

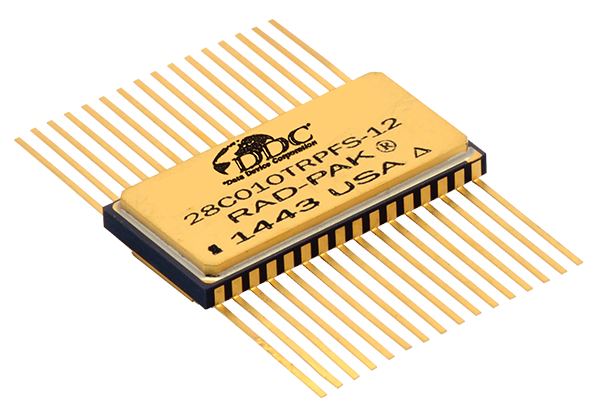

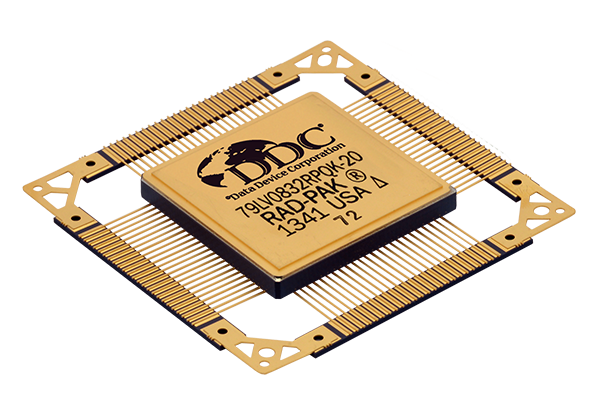

DDC’s EEPROM memories are designed with RAD-PAK® technology to enable high reliability in the most demanding space applications and feature a greater than 100 krad (Si) total dose tolerance. These flight proven rad-hard EEPROM memories are offered in a variety of voltage, density and speed options, including 3.3V and 5V, with memory densities ranging from 1Mb to 20Mb, and with access times as low as 120ns. DDC also offers Rad Tolerant (“RT”) versions without shielding, for missions with less stringent total dose requirements.

Value Drivers: QML-V approved ceramic hermetic packages | SEL & SEFI immune | TRL-9 (flight heritage) | 10 year data retention guarantee

EEPROM Rad Hard Memories

3.3V

1 Mb (128k x 8) - Narrow	8 Mb (256k x 32)
1 Mb (128k x 8)	20 MB (512k x 40)
4 Mb (512k x 8)

1 Mb (128k x 8)	8 Mb (512k x 16)
1 Mb (128k x 8) - Narrow	20 MB (512k x 40)
4 Mb (512k x 8)

(Click here to see full line of rad hard memories)

Competitor Replacements

Recommended DDC replacement parts

3.3V EEPROM Memories
Competitor #	Configuration	DDC #
3DEE1M08VS1192	1 Mb (128k x 8)	28LV010- Narrow
3DEE4M08VS4145	4 Mb (512k x 8)	79LV0408
3DEE8M32VS8094	8 Mb (256k x 32)	79LV0832

5V EEPROM Memories
Competitor #	Configuration	DDC #
3DEE1M08CS1193	1 Mb (128k x 8)	28C010T- Narrow 28C011T
3DEE4M08CS4209	4 Mb (512k x 8)	79C0408
3DEE8M32CS8163	8 Mb (256k x 32)	79C0832
