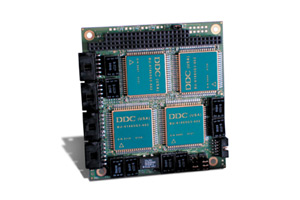

The BU-65568 is a COTS solution for interfacing between an embedded PC104 processor card and a MIL-STD-1553 bus. With one to four channels of DDC's field-proven Enhanced Mini-ACE, the BU-65568's advanced bus controller architecture provides considerable flexibility and autonomy in a number of areas. This includes methods to control message scheduling, along with the means to minimize host overhead for implementing data double buffering and bulk transfers, and inserting asynchronous messages. The BC architecture also supports various message retry and bus switching strategies, and provides flexibility for data logging and fault reporting.
The cards remote terminal architecture provides flexibility in meeting all common MIL-STD-1553 protocols. The choices of RT buffering and interrupt options provide robust support for synchronous and asynchronous messaging, while ensuring data sample consistency and supporting bulk data transfers.
The card includes a true message monitor mode and a combined RT/Monitor mode for highly flexible message filtering and robust interrupt architecture that simplifies host software.
The BU-65568 includes two addressing modes, to provide consistancy of compatibility with both Intel and Motorola pressure platforms. The BU-65568 comes with BU-69090 series software, a library supporting all modes of operation, DOS and VxWorks device drivers including source code, and an offline development environment. The BU-65568 also includes an 8-bit bi-directional I/O port.
MIL-STD-1553 PC/104 Card
Rev: WEB Rev 3
(4 Pages, 104 KB)
BU-65568 MIL-STD-1553 BC/RT/MT PC/104 CARD
(24 Pages, 255 KB)
EMACE RTL Software Manual
(589 Pages, 1 MB)
Hardware Manual for the BU-65568
(100 Pages, 1 MB)
MIL-STD-1553 Designer's Guide
Rev: 6th Edition
(367 Pages, 3 MB)
ACE/Mini-ACE User's Guide
(466 Pages, 7 MB)
Enhanced Mini-ACE Users Guide Vol. 1 - Architectural Reference
(356 Pages, 4.64 MB)
Enhanced Mini-ACE Users Guide Vol. 2 - Hardware Reference
(192 Pages, 17 MB)
Enhanced Mini-ACE - Test Evaluation Data
(137 Pages, 408 KB)
Enhanced Mini-ACE - Reliability Reports
(133 Pages, 20.6 MB)
#48 DDC MIL-STD-1553 Rate Group
(32 Pages, 1 MB)
Lightning Protection for Discrete Logic I/O
(9 Pages, 620 KB)
PC/104 Capabilities Brochure
(4 Pages, 323 KB)
Data Bus Boards, Modules, and Software Flyer
(2 Pages, 1 MB)
Total COTS Solutions for Embedded 1553
(12 Pages, 199 KB)
DDC Product Catalog
(84 Pages, 33.60 MB)
BU-65568 MIL-STD-1553 BC/RT/MT PC/104 CARD Order Info
Rev: D (1 Pages, 40 KB)
