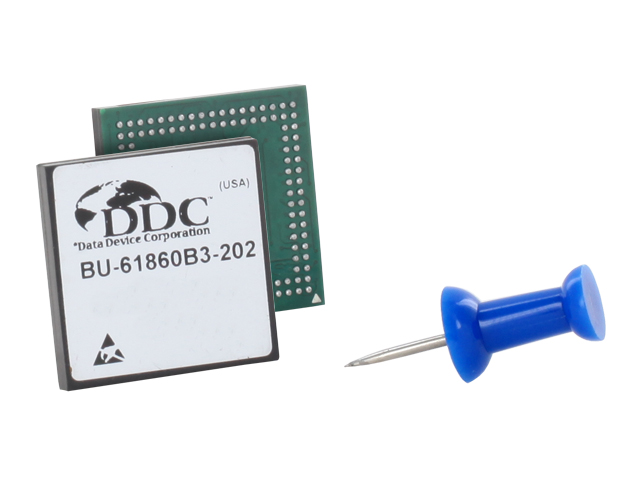

The Micro-ACE® (µ-ACE) plastic BGA is the industry's smallest MIL-STD-1553 terminal with a package footprint of .80 inches square. In addition to having the smallest body footprint, the µ-ACE eliminates the real estate occupied by gull wing package leads. As a result, the µ-ACE provides an ideal 1553 solution for applications where PC board space is at a premium.
The µ-ACE terminals integrate dual transceiver, protocol logic, and either 4K words or 64K words of internal RAM. The µ-ACE's architecture is identical to the Enhanced Mini-ACE®, and is compatible with the previous Mini-ACE (Plus) and ACE generations.
A salient feature of the µ-ACE is its advanced bus controller architecture. This provides methods to control message scheduling, the means to minimize host overhead for asynchronous message insertion, facilitate bulk data transfers and double buffering, and support various message retry and bus switching strategies. The card's remote terminal architecture provides flexibility in meeting all common MIL-STD-1553 protocols. The choice of RT data buffering and interrupt options provides robust support for synchronous and asynchronous messaging, while ensuring data sample consistency and supporting bulk data transfers. The µ-ACE's monitor mode provides true message monitoring, and supports filtering on an RT address/T/R Bit/subaddress basis.
The µ-ACE incorporates fully autonomous built-in self-tests of its internal protocol logic and RAM. The µ-ACE terminals provide the same flexibility in host interface configurations as the ACE Mini-ACE, along with a reduction in the host processor's worst case holdoff time.
APPLICATION Ideal solution for an embedded 5 Volt fully integrated 1553 dual redundant interface where real estate is at a premium.
Micro-ACE, Micro-ACE TE and PCI-Micro-ACE TE
(4 Pages, 860 KB)
MIL-STD-1553 Designer's Guide
Rev: 6th Edition
(367 Pages, 3 MB)
Enhanced Mini-ACE Users Guide Vol. 1 - Architectural Reference
(356 Pages, 4.64 MB)
Enhanced Mini-ACE Users Guide Vol. 2 - Hardware Reference
(192 Pages, 17 MB)
(0 Pages, 55 KB)
Enhanced Mini-ACE - Test Evaluation Data
(137 Pages, 408 KB)
Enhanced Mini-ACE - Reliability Reports
(133 Pages, 20.6 MB)
#23 Processor to ACE Interfaces
(20 Pages, 166 KB)
#24 ACE RT Memory Management Options
(16 Pages, 119 KB)
#27 Electrical and Layout Considerations for 1553 Terminal Design
(13 Pages, 367 KB)
#29 Upgrading From ACE to MINI-ACE MIL-STD-1553 Data Bus Terminals
(8 Pages, 52 KB)
#32 Enhanced MINI-ACE Architecture Offloads Host Processor For BC Applications
(20 Pages, 131 KB)
#42 ASYNCHRONOUS MESSAGE INSERTION FOR DDC’S ENHANCED MINI-ACE SERIES
(7 Pages, 65 KB)
#46 - Integrating the BU-69092 RTL with an Enhanced Mini-ACE Component in VxWorks (Note: Applies to legacy revisions of the SDK and VxWorks OS only)
(7 Pages, 725 KB)
BGA User's Guide Application Note (B-49)
(25 Pages, 3.23 MB)
Host Interface Performance for MIL-STD-1553 Terminals
(11 Pages, 769 KB)
Lightning Protection for Discrete Logic I/O
(9 Pages, 620 KB)
Enhanced Mini-ACE Brochure
(8 Pages, 91 KB)
Data Bus Boards, Modules, and Software Flyer
(2 Pages, 1 MB)
Total COTS Solutions for Embedded 1553
(12 Pages, 199 KB)
DDC Product Catalog
(84 Pages, 33.60 MB)
MIL-STD-1553 AceXtreme C SDK for Windows 8.1 and below (.NET Support Available - Contact Factory)
MIL-STD-1553 AceXtreme C SDK for Linux (supports kernels below 4.x)
MIL-STD-1553 AceXtreme C SDK for VxWorks 6.9
BU-6174X/6184X/6186X Enhanced Miniature Advanced Communications Engine Order Info
Rev: AE (2 Pages, 42.11 KB)
