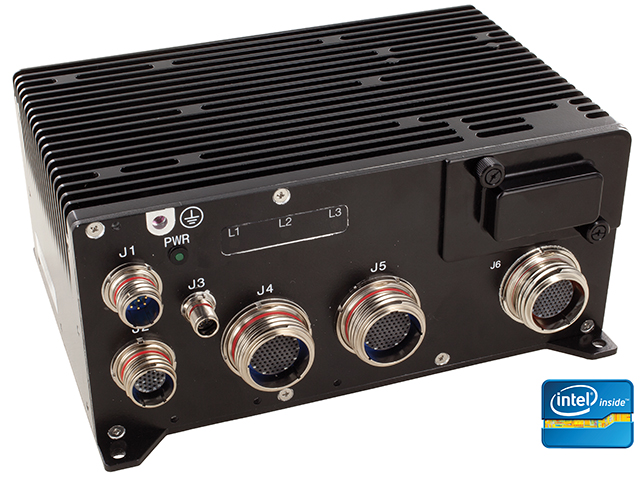

DDC's Rugged Avionics Interface Computer (AIC) provides a flexible and scalable platform that supports a wide range of data network communications. The system combines best-in-class performance from Intels embedded computing architecture and the I/O flexibility of DDC's High Density Multi-Protocol XMC module, to deliver unmatched avionics connectivity in a small form factor, deployable, rugged enclosure.

BENEFITS

Embedded Intel® Processor Provides Best-in-Class Computing, Programming and Flexibility, Enabling the AIC to Serve High Density Protocol Bridging and Application Needs.
Qualified for Rugged Air and Ground Environments.
Scalable Architecture and DDC's Portfolio of High Density XMC and Mini-PCIe Modules Enables System Customization to Support a Wide Range of Applications.
Field-Proven High TRL Hardware and Software Solution Saves Development Time and Costs.
Three Modes of Operation Provide Complete Bridging Capability for Lab Environments
1. Remote Access Mode Uses Ethernet as a Virtual Backplane Between Applications Running on a Host Computer and 1553/429 Interfaces Located within the AIC, Eliminating the Need and Cost of Long Cabling to Onboard 1553/429 Connections from the Test Lab
2. Protocol Conversion Mode Uses Bridging SDK, Which Allows Users to Easily Create Embedded Software on the AIC that will Autonomously Forward Data Between MIL-STD-1553, ARINC 429, and Ethernet Interfaces
3. Standalone Mode Allows the AIC to Operate as a User Programmable Computer System

APPLICATIONS

Military Aerospace
- Fixed Wing
- Rotary
UAVs
Commercial Aerospace
- Fixed Wing
- Rotary
Ground Vehicles

Performance

Scalable Processing from an Intel® Atom Baytrail Processor to an Intel Core i3, i5, or i7 Dual or Quad Core Processor
Dual Gigabit Ethernet Interfaces for Network Connectivity and Bridging to MIL-STD-1553 or ARINC 429
Many Configuration Options Supported with (1) XMC site and (2) Mini-PCIe sites

Functionality

Enabled by DDC's Integrated Multi-I/O XMC
- Up to 4 Dual Redundant MIL-STD-1553 Channels
  - Supports MIL-STD-1553A/B and MIL-STD-1760
  - BC Disable for RT Only Applications
  - Tx Inhibit for MT Only Applications
- Up to 20 Programmable Tx/Rx ARINC 429 Channels
  - Supports ARINC 575 and Other ARINC Protocols
  - Full Line Rate on All Channels Simultaneously
  - Tx Inhibit for ARINC 429 Rx Only Applications
  - Programmable ARINC 429 Speed
- Up to 2 Programmable Tx/RX ARINC 717 Channels
- Up to 2 CANbus 2.0/ARINC 825 Channels
- Up to 8 Programmable RS-232/422/485 Channels
- Up to 10 Avionics/Digital Discrete I/O
Enabled by DDC's Integrated Mini-PCIe
- Up to 4 Dual Redundant MIL-STD-1553 Channels
- Up to 12 Programmable Tx/Rx ARINC 429 Channels

Product Brief

BU-67124W Product Brief

Rev: 6 (2 Pages, 1.08 MB)

Manual

BU-67124W Avionics Interface Computer Rugged

Rev: A (55 Pages, 5 MB)

BU-69094SX Avionics Interface Computer SDK Software User's Manual

Rev: B (135 Pages, 3 MB)

DD-42992S0 Software User's Manual for ARINC 429 Multi-IO Cards (MN-42992SX-001)

Rev: R (320 Pages, 3.75 MB)

Guide

MIL-STD-1553 Designer's Guide

Rev: 6th Edition (367 Pages, 3 MB)

Application Note

dataSIMS Avionics I/O Support

Rev: 10_15 (21 Pages, 2 MB)

Overview

Data Bus Boards, Modules, and Software Flyer

Rev: 2 (2 Pages, 1 MB)

Data Bus Solutions: Computer Systems
