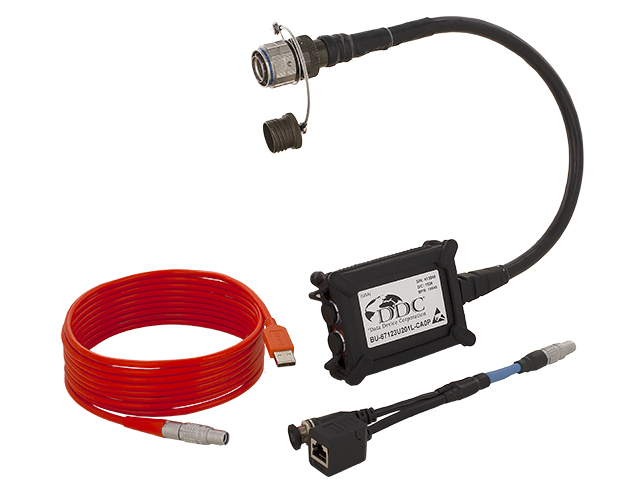

The BU-67123U201 is a second generation dual channel USB-to-1553 adapter/module with an improved and more robust design. For use as a portable 1553 programming maintenance adapter, it easily connects to any small embedded system, laptop, or tablet computer. DDC’s industry leading Total-AceXtreme® architecture enables this device to be a world leading compact and SWaP optimized USB-to-1553 maintenance adapter.
BENEFITS
Complete hardware and software solution
Enables 1553 to be tested or updated on any system
Suitable for both embedded and portable applications
Proven design leveraged from DDC's widely deployed BU-67113U USB board
Save time and reduce cost
Common test/embedded API for rapid prototyping with less programming time
Program in minutes with BusTrACEr™ automated application C code generation
IRIG-106 Chapter 10 on board formatting
On board DMA engine for low CPU utilization
Qualified and RT validated Applications
APPLICATIONS
Rugged small embedded systems
Laptops or tablets
Bus troubleshooting
Flight-line test and diagnostic
Hand held test equipm
Small displays
Performance
Compact, rugged design
Rugged standard 38999 connector
Ultra low power: 3.5W (50% duty cycle)
USB interface – ideal for use with desktops/laptops
Power and Ethernet feedthroughs
Quick disconnecting cables
Functionality
Two dual redundant MIL-STD-1553 channels
BC/MT or Multi-RT/MT per channel
Supports MIL-STD-1553A/B and MIL-STD-1760
48-Bit/100ns time stamp
ACE TREME® - Next generation 1553 ASIC
Environmental
BU-67123U 2 Channel MIL-STD-1553 to USB Maintenance Adapter Product Brief
Rev: 2 (2 Pages, 953.85 KB)
BU-69092SX AceXtreme C SDK Software Reference Manual
Rev: G (989 Pages, 6 MB)
BU-69092SX AceXtreme C SDK Software User's Manual
Rev: M (231 Pages, 5 MB)
BU-67123U Hardware Manual
Rev: A (42 Pages, 2.64 MB)
#52 Advanced Monitor Usage in AceXtreme
Rev: 2018-12-03 (28 Pages, 449 KB)
#48 DDC MIL-STD-1553 Rate Group
Rev: 2018-10-03 (32 Pages, 1 MB)
Data Bus Boards, Modules, and Software Flyer
Rev: 2 (2 Pages, 1 MB)
DDC Company Overview
Rev: 2020-07 (9 Pages, 14.38 MB)
BusTrACEr for Windows. 60-day full functional trial (requires DDC hardware). (Note: Certain products are compatible with BusTrACEr® software.)
BU-69092S0 (for Windows 10 & 11)
MIL-STD-1553 AceXtreme C SDK for Windows 8.1 and below (.NET Support Available - Contact Factory)
MIL-STD-1553 AceXtreme C SDK for Linux (supports kernels below 4.x)
MIL-STD-1553 AceXtreme C SDK for Solaris
dataSIMS Software. 60-day full functional trial. This software can be configured for demonstration mode. (Note: Certain products are compatible with monitoring only versions of dataSIMS software.)
BU-67123U Ordering Information
Rev: A (1 Pages, 503.82 KB)
