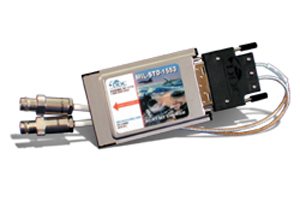

The BU-65553 is a complete MIL-STD-1553 interface for portable test and monitoring equipment, such as laptop computers. The BU-65553 1553 test card provides a Type II PC-card (PCMCIA) form factor based on DDC's field-proven and industry-standard Enhanced Mini-ACE. The advanced bus controller architecture gives the 1553 test card superior flexibility and autonomy. Resulting advantages include improving message scheduling control; minimizing host overhead for asynchronous message insertion; facilitating bulk data transfers and double buffering, message retry and bus switching strategies, and data logging and fault reporting.
The 1553 test card's remote terminal architecture meets all common MIL-STD-1553 protocols. RT data buffering and interrupt options offer robust support for synchronous and asynchronous messaging while ensuring data sample consistency and supporting bulk data transfers. The BU-65553 MIL-STD-1553 card features a mating connector with a metal backshell and jackscrews for superior durability.
Free BU-65553 software supports all modes of operation, including DOS, Windows 3.1, Windows 9x/NT/2000 and Linux device drivers (including source code). An optional dataMARSsoftware package for systems integration and simulation is also available. This package incorporates real time data acquisition and display, high-level graphical interfaces, triggering capabilities, unit conversion and mathematical manipulation, dynamic modeling, and report generation.
The BU-65553 enables portable 1553 test card interfacing for laboratory, test, and flightline applications.
Compatible with dataMARS
BU-65553 MIL-STD-1553 A/B BC/RT/MT PCMCIA INTERFACE CARD
(28 Pages, 616 KB)
EMACE PLUS SDK Software Manual
(808 Pages, 2 MB)
EMACE RTL Software Manual
(589 Pages, 1 MB)
HW/SW manual for MIL-STD-1553 BC/RT/MT PCMCIA Interface card
(121 Pages, 1 MB)
MIL-STD-1553 PCMCIA Card
(4 Pages, 256 KB)
#35 Enhanced Mini-Ace Built-In Self-Test
(18 Pages, 346 KB)
#48 DDC MIL-STD-1553 Rate Group
Rev: 2018-10-03 00:00:00
(32 Pages, 1 MB)
dataSIMS Avionics I/O Support
(21 Pages, 2 MB)
Lightning Protection for Discrete Logic I/O
Rev: 2015-12-01 00:00:00
(9 Pages, 620 KB)
Data Bus Boards and Components Flyer
(2 Pages, 1 MB)
Data Bus Boards, Modules, and Software Flyer
(2 Pages, 1 MB)
DDC Corporate Overview
Rev: 2014-12-01 00:00:00
(16 Pages, 2.8 MB)
DDC Product Catalog
(76 Pages, 28 MB)
MIL-STD-1553 Designer's Guide
Rev: 6th Edition
(367 Pages, 3 MB)
PCMCIA Quick Start Guide
(4 Pages, 2 MB)
Test and Simulation Solutions Brochure
Rev: 2018-12-06 00:00:00
(4 Pages, 5 MB)
ACE/Mini-ACE User's Guide
(466 Pages, 7 MB)
Enhanced Mini-ACE - Test Evaluation Data
(137 Pages, 408 KB)
Enhanced Mini-ACE - Reliability Reports
(133 Pages, 20.6 MB)
Enhanced Mini-ACE Users Guide Vol. 1 - Architectural Reference
(355 Pages, 2 MB)
Enhanced Mini-ACE Users Guide Vol. 2 - Hardware Reference
(192 Pages, 17 MB)
(75 Pages, 176 KB)
BusTrACEr for Windows. 60-day full functional trial (requires DDC hardware). (Note: Certain products are compatible with BusTrACEr® software.)
MIL-STD-1553 AceXtreme C SDK for Windows
(.NET Support Available - Contact Factory) (for Legacy Devices)
MIL-STD-1553 and ARINC 429 LabVIEW Support Package for Windows. 60-day full functional trial (requires DDC hardware). (Note: Certain products are compatible with this software.)
dataSIMS Software. 60-day full functional trial. This software can be configured for demonstration mode. (Note: Certain products are compatible with monitoring only versions of dataSIMS software.)
Download MIL-STD-1553 SBS PASS 3200 to DDC dataSIMS Conversion Utility.
Download sample multiplex driver code for Serial I/O, Ethernet and DDC`s Synchro cards.
Download example workspace and configuration files to support Avionics I/O in dataSIMS for various DDC hardware.
