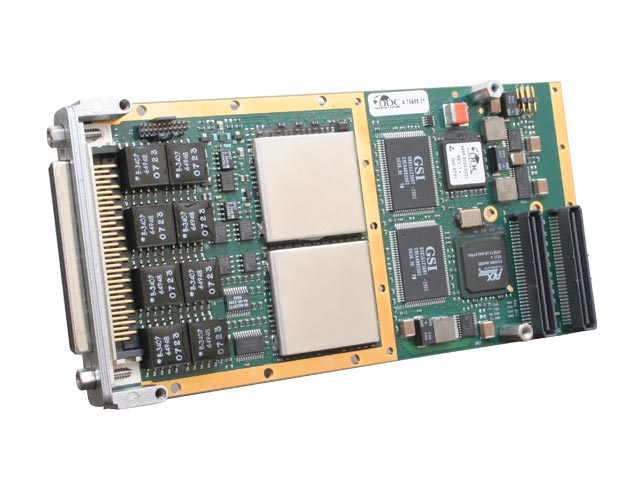

The BU-65578F/M is a PMC card that provides up to eight dual-redundant MIL-STD-1553 channels operating in BC, RT, MT, or combined RT/MT modes. The card also contains up to eight digital discrete I/Os, eight avionics (+35V) discrete I/Os, an IRIG-B time code input, an IRIG-B time code output/generator, an external time tag input, and an external time tag clock output.
Each 1553 channel uses DDCs Extended Enhanced Mini-ACE® (E2MA) architecture which is fully backwards API compatible with DDCs industry standard, field proven, Enhanced Mini-ACE. The card includes the MIL-STD-1553 Enhanced Mini-ACE PLUS C Software Development Kit (SDK) with drivers for VxWorks, Linux, and Windows 2000/XP. These SDKs allow you to quickly integrate DDCs 1553 cards into your C source code applications. A common SDK exists across all operating systems allowing the programmer portability across different platforms. The easy-to-use high level functions abstract all low level hardware accesses and memory allocation such that specific hardware knowledge is not required.
Each 1553 channel is individually configurable as a Bus Controller (BC), Remote Terminal (RT), Bus Monitor (MT) or combined RT Monitor. The advanced BC architecture provides a high degree of flexibility and autonomy by improving message schedule control, minimizing host overhead for asynchronous message insertion, facilitating bulk data transfers, double buffering, message retry, bus switching strategies, data logging, and fault reporting. The RT architecture provides flexibility in meeting all MIL-STD-1553B protocols. The card has an intelligent hardware offload DMA architecture that dramatically reduces PCI bus and host CPU utilization while storing 1553 monitor data in a convenient and portable IRIG-106 Chapter 10 file format. Storing data in the industry standard IRIG-106 Chapter 10 file format allows DDCs cards to be used with digital flight data recorders.
The BU-65578F/M is designed for harsh environments and can be used in either conduction or convection cooled applications. The card is available with front panel I/O or rear I/O. The cards rugged construction and ability to operate from -40°C to +85°C on the thermal rail make it ideal for use in flight data recorders, display applications, mission computers, embedded black boxes, and avionics labs.
BU-65578FM - 8 Channel MIL-STD-1553 PMC Card
(4 Pages, 312 KB)
EMACE PLUS SDK Software Manual
(808 Pages, 2 MB)
Hardware Manual for the BU-65578F/M MIL-STD-1553 Eight-Channel PMC
(44 Pages, 1 MB)
E2MA/AceXteme Flash Utility Instructions
(24 Pages, 1 MB)
MIL-STD-1553 Designer's Guide
Rev: 6th Edition
(367 Pages, 3 MB)
PMC Avionics Card Quick Start Guide
(6 Pages, 2 MB)
#45 Integrating the BU-69092S2 Package with any VxWorks 6.x BSP
(8 Pages, 703 KB)
#51 VxWorks Porting Guide for BU-69092X2
(37 Pages, 1 MB)
#57 Using IRIG 200-04 Time Codes with DDC Data Bus Devices
(10 Pages, 1 MB)
dataSIMS Avionics I/O Support
(21 Pages, 2 MB)
Lightning Protection for Discrete Logic I/O
(9 Pages, 620 KB)
PMC Board Capabilities Brochure
(4 Pages, 376 KB)
Data Bus Boards, Modules, and Software Flyer
(2 Pages, 1 MB)
IRIG 106 Chapter 10 Standardizes MIL-STD-1553 Data Recording
(16 Pages, 303 KB)
DDC Product Catalog
(84 Pages, 33.60 MB)
BusTrACEr for Windows. 60-day full functional trial (requires DDC hardware). (Note: Certain products are compatible with BusTrACEr® software.)
MIL-STD-1553 AceXtreme C SDK for Windows
(.NET Support Available - Contact Factory) (for Legacy Devices)
MIL-STD-1553 AceXtreme C SDK for Linux (for Legacy Devices)
MIL-STD-1553 AceXtreme C SDK for VxWorks
MIL-STD-1553 and ARINC 429 LabVIEW Support Package for Windows. 60-day full functional trial (requires DDC hardware). (Note: Certain products are compatible with this software.)
dataSIMS Software. 60-day full functional trial. This software can be configured for demonstration mode. (Note: Certain products are compatible with monitoring only versions of dataSIMS software.)
BU-65578FM - 8 Channel MIL-STD-1553 PMC Card Order Info
