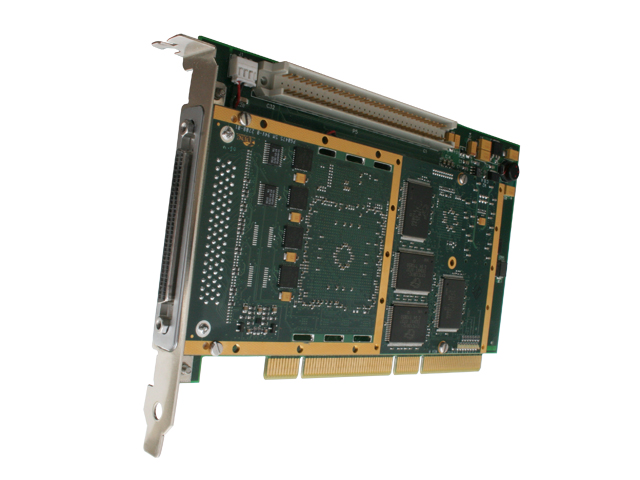

The BU-65590I is a multi-I/O PCI card providing new levels of performance and flexibility for systems interfacing to a MIL-STD-1553 or ARINC 429 data bus. There are up to four dual redundant MIL-STD-1553 channels operating in BC, RT, MT, or RT/MT modes. Sixteen ARINC 429 receive channels and four ARINC 429 transmit channels operate in high/low speed with automatic slew rate adjustment. The card also contains six digital discrete I/Os, an IRIG-B time synchronization input, 2 RS-422/485 Serial I/O channels, and up to 2 RS-232 Serial I/O Channels. The combination of multiple I/O on one card saves valuable PCI sites on host computers.
The card includes the BU-69092SX MIL-STD-1553 Enhanced Mini-Ace Plus C Software Development Kit (SDK) and the DD-42992SX ARINC 429 Multi-I/O C SDK, along with source code samples, and detailed documentation. The device is also available with DDC's MIL-STD-1553 Tester/Simulator Menu, which is a graphical bus analysis and simulation software interface for 1553 data buses.
Optional software packages include the dataMARS monitoring software. The dataMARS monitoring software allows for advanced monitoring through real time displays and provides post analysis capability through recorded data replay, report generation, and advanced search capability for ARINC 429 and MIL-STD-1553 data buses.
Multi-I/O Avionics PMC & PCI Cards
Rev: A (4 Pages, 291 KB)
Hardware Datasheet for the BU-65590F/M/I Multi-IO Avionics Device
Rev: A (59 Pages, 942 KB)
EMACE PLUS SDK Software Manual
Rev: H (808 Pages, 2 MB)
DD-42992S0 Software User's Manual for ARINC 429 Multi-IO Cards (MN-42992SX-001)
Rev: R (320 Pages, 3.75 MB)
E2MA/AceXteme Flash Utility Instructions
Rev: 17 (24 Pages, 1.82 MB)
MIL-STD-1553 Designer's Guide
Rev: 6th Edition (367 Pages, 3 MB)
PCI/PCIe Avionics Card Quick Start Guide
Rev: 3 (4/13) (6 Pages, 3 MB)
#51 VxWorks Porting Guide for BU-69092X2
Rev: 2018-10-11 (37 Pages, 1 MB)
#48 DDC MIL-STD-1553 Rate Group
Rev: 2018-10-03 (32 Pages, 1 MB)
dataSIMS Avionics I/O Support
Rev: 10_15 (21 Pages, 2 MB)
Lightning Protection for Discrete Logic I/O
Rev: 2015-12-01 (9 Pages, 620 KB)
Data Bus Boards, Modules, and Software Flyer
Rev: 2 (2 Pages, 1 MB)
IRIG 106 Chapter 10 Standardizes MIL-STD-1553 Data Recording
Rev: 2007-11-01 (16 Pages, 303 KB)
DDC Product Catalog
Rev: 8 (84 Pages, 33.60 MB)
BusTrACEr for Windows. 60-day full functional trial (requires DDC hardware). (Note: Certain products are compatible with BusTrACEr® software.)
MIL-STD-1553 AceXtreme C SDK for Windows (.NET Support Available - Contact Factory) (for Legacy Devices)
MIL-STD-1553 AceXtreme C SDK for Linux (for Legacy Devices)
MIL-STD-1553 AceXtreme C SDK for VxWorks
MIL-STD-1553 and ARINC 429 LabVIEW Support Package for Windows. 60-day full functional trial (requires DDC hardware). (Note: Certain products are compatible with this software.)
ARINC 429 Multi-IO C SDK for Windows (.NET Support Available - Contact Factory) (for Legacy Devices)
ARINC 429 Multi-IO C SDK for Linux (for Legacy Devices)
ARINC 429 Mulit-IO SDK for VxWorks
ARINC 429 Multi-IO SDK for Integrity
dataSIMS Software. 60-day full functional trial. This software can be configured for demonstration mode. (Note: Certain products are compatible with monitoring only versions of dataSIMS software.)
BU-65590I MULTI-I/O MIL-STD-1553 / ARINC 429 AVIONICS PCI CARD Order Info
Rev: A (1 Pages, 85 KB)
