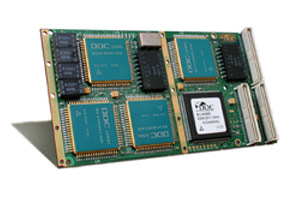

The BU-65565 1553 PCI Mezzanine (PMC) card offers a comprehensive solution for interfacing between embedded PCI and MIL-STD-1553 buses. The conduction cooled version, built to VITA-20 specifications, features a robust design with thermal vias, a heat spreading plane, and copper strips providing a thermal interface to baseboard rails. The card has passed extensive shock and vibration testing. The BU-65565 MIL-STD-1553 card is also available as a convection-cooled card, with a choice of rear-panel, front-panel, or rear- and front-panel input/output.
The BU-65565 includes one to four channels of DDC's field-proven, industry standard Enhanced Mini-ACE. This advanced 1553 bus controller architecture provides a high degree of flexibility and autonomy: improving message scheduling control; minimizing host overhead for asynchronous message insertion; and facilitating bulk data transfers and double buffering, message retry and bus switching strategies, and data logging and fault reporting. In addition, the 1553 PMC card's remote terminal architecture meets all common MIL-STD-1553 protocols. RT data buffering and interrupt options offer robust support for synchronous and asynchronous messaging while ensuring data sample consistency and supporting bulk data transfers.
Free BU-69090 software with a library supports all modes of operation, VxWorks and Linux device drivers (including source code), and an offline development environment.
Compatible with dataSIMS/dataMARS
Enhanced Mini-ACE Users Guide Vol. 2 - Hardware Reference
(192 Pages, 17 MB)
Enhanced Mini-ACE Users Guide Vol. 1 - Architectural Reference
(356 Pages, 4.64 MB)
MIL-STD-1553 Designer's Guide
Rev: 6th Edition
(367 Pages, 3 MB)
ACE/Mini-ACE User's Guide
(466 Pages, 7 MB)
MIL-STD-1553 PMC Card
Rev: WEB REV 4
(4 Pages, 240 KB)
BU-65565 MIL-STD-1553 PMC Card
(28 Pages, 302 KB)
EMACE PLUS SDK Software Manual
(808 Pages, 2 MB)
EMACE RTL Software Manual
(589 Pages, 1 MB)
Hardware Manual for the BU-65565/66
(73 Pages, 1 MB)
ACE RTL Software Manual
(306 Pages, 760 KB)
Enhanced Mini-ACE - Test Evaluation Data
(137 Pages, 408 KB)
Enhanced Mini-ACE - Reliability Reports
(133 Pages, 20.6 MB)
Lightning Protection for Discrete Logic I/O
(9 Pages, 620 KB)
dataSIMS Avionics I/O Support
(21 Pages, 2 MB)
#51 VxWorks Porting Guide for BU-69092X2
(37 Pages, 1 MB)
#45 Integrating the BU-69092S2 Package with any VxWorks 6.x BSP
(8 Pages, 703 KB)
#43 Integrating the BU-69090S2 Package with any VxWorks BSP
(7 Pages, 205 KB)
#41 Converting from a BU-65565 Card to a BU-65566 Card
(4 Pages, 216 KB)
#35 Enhanced Mini-Ace Built-In Self-Test
(18 Pages, 346 KB)
#33 33 MHZ / 32-BIT PCI BUS Interface Basics
(8 Pages, 87 KB)
Total COTS Solutions for Embedded 1553
(12 Pages, 199 KB)
DDC Product Catalog
(84 Pages, 33.60 MB)
BusTrACEr for Windows. 60-day full functional trial (requires DDC hardware). (Note: Certain products are compatible with BusTrACEr® software.)
MIL-STD-1553 AceXtreme C SDK for Windows
(.NET Support Available - Contact Factory) (for Legacy Devices)
MIL-STD-1553 AceXtreme C SDK for Linux (for Legacy Devices)
MIL-STD-1553 AceXtreme C SDK for VxWorks
MIL-STD-1553 and ARINC 429 LabVIEW Support Package for Windows. 60-day full functional trial (requires DDC hardware). (Note: Certain products are compatible with this software.)
dataSIMS Software. 60-day full functional trial. This software can be configured for demonstration mode. (Note: Certain products are compatible with monitoring only versions of dataSIMS software.)
BU-65565 MIL-STD-1553 PMC Card Order Info
Rev: C (1 Pages, 14 KB)
