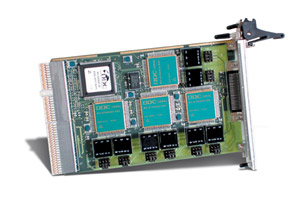

The BU-65569T/BX is a single-channel or multi-channel MIL-STD-1553 CompactPCI / PMC card. The BU-65569T/BX includes one to four dual redundant 1553 channels on a convection-cooled card.
The BU-65569T/BX is available with front or rear panel I/O. The BU-65569TX has front panel I/O only, where the 1553 signals are routed through the front panel connector. The BU-65569BX has user selectable routing of 1553 signals through the front and/or rear panel connector
The design of the BU-65569T/BX leverages the Enhanced Mini-ACE. Each channel may be independently programmed for BC, RT, Monitor, or RT/Monitor mode.
Advanced architectural features of the Enhanced Mini-ACE include a highly autonomous bus controller, an RT providing a wide variety of buffering options, and a selective message monitor. Each Enhanced Mini-ACE channel incorporates 64K words of RAM, and utilizes 3.3 volt logic to reduce power consumption.
Compatible with dataMARS
BU-65569T MIL-STD-1553 CompactPCI Card
(29 Pages, 899.17 KB)
BU-65569T/B Hardware Manual MIL-STD 1553 BC/RT/MT CompactPCI Interface Card
(136 Pages, 1.84 MB)
EMACE PLUS SDK Software Manual
(808 Pages, 2 MB)
EMACE RTL Software Manual
(589 Pages, 1 MB)
Compact PCI Avionics Card Quick Start Guide
Rev: 2 (10/12)
(6 Pages, 3 MB)
MIL-STD-1553 Designer's Guide
Rev: 6th Edition
(367 Pages, 3 MB)
ACE/Mini-ACE User's Guide
(466 Pages, 7 MB)
Enhanced Mini-ACE Users Guide Vol. 1 - Architectural Reference
(356 Pages, 4.64 MB)
Enhanced Mini-ACE Users Guide Vol. 2 - Hardware Reference
(192 Pages, 17 MB)
Enhanced Mini-ACE - Test Evaluation Data
(137 Pages, 408 KB)
Enhanced Mini-ACE - Reliability Reports
(133 Pages, 20.6 MB)
#33 33 MHZ / 32-BIT PCI BUS Interface Basics
(8 Pages, 87 KB)
#43 Integrating the BU-69090S2 Package with any VxWorks BSP
(7 Pages, 205 KB)
#45 Integrating the BU-69092S2 Package with any VxWorks 6.x BSP
(8 Pages, 703 KB)
#48 DDC MIL-STD-1553 Rate Group
(32 Pages, 1 MB)
#51 VxWorks Porting Guide for BU-69092X2
(37 Pages, 1 MB)
dataSIMS Avionics I/O Support
(21 Pages, 2 MB)
Lightning Protection for Discrete Logic I/O
(9 Pages, 620 KB)
Data Bus Boards, Modules, and Software Flyer
(2 Pages, 1 MB)
Total COTS Solutions for Embedded 1553
(12 Pages, 199 KB)
DDC Product Catalog
(84 Pages, 33.60 MB)
BusTrACEr for Windows. 60-day full functional trial (requires DDC hardware). (Note: Certain products are compatible with BusTrACEr® software.)
MIL-STD-1553 AceXtreme C SDK for Windows
(.NET Support Available - Contact Factory) (for Legacy Devices)
MIL-STD-1553 AceXtreme C SDK for Linux (for Legacy Devices)
MIL-STD-1553 AceXtreme C SDK for VxWorks
MIL-STD-1553 and ARINC 429 LabVIEW Support Package for Windows. 60-day full functional trial (requires DDC hardware). (Note: Certain products are compatible with this software.)
dataSIMS Software. 60-day full functional trial. This software can be configured for demonstration mode. (Note: Certain products are compatible with monitoring only versions of dataSIMS software.)
BU-65569T MIL-STD-1553 CompactPCI Card Order Info
Rev: H (1 Pages, 52 KB)
