NOTE: This card is not supported on Windows 7 or above...

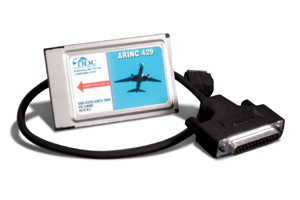

The ARINC 429 DD-42912M3-300 and DD-42924M3-300 are two versions of a high density, Type II PCMCIA card for interfacing with an ARINC 429 data bus. The DD-42912M3-300 version features one ARINC transmit channel, two ARINC receive channels, and two discrete outputs; while the DD-42924M3-300 contains two ARINC transmit channels, four ARINC receive channels, and one discrete output. The ARINC-429 card can be used as a data source for simulating or data receiver for analyzing data on a data bus. With excellent transfer reliability, the card provides scheduled and FIFO transmissions, receive data filtering and time stamping, and FIFO and mailbox reception modes.
DD-42912M3-300/DD-42924M3-300 software supports all modes of operation and includes 'C', LabVIEW and LabVIEW Real-Time, and LabWindows/CVI programming libraries. An optional Commercial Avionics Utilities Suite, with an ARINC 429 Data Bus Analyzer and ARINC 615 Data Loader, is also available. The WinPanel GUI allows users to transmit and receive data onto a bus without developing software. Optional dataSIMS software offers powerful monitoring, extensive post analysis capabilities, and simulation capability.
The ARINC-429 DD-42912M3-300/DD-42924M3-300 is designed for avionics applications including: simulating and testing new systems prior to use with actual flight systems, in-lab end-item testing, and onboard testing via portable PC.
Compatible with dataSIMS
ARINC 429 PCMCIA Card
(4 Pages, 127 KB)
DD-42912/24M3-300 ARINC 429 PCMCIA Interface Card
(9 Pages, 287 KB)
Hardware/Software User’s Manual For ARINC 429 PCMCIA Cards
(203 Pages, 1 MB)
MN-42992SX-001 Software User's Manual for ARINC 429 Multi-IO Cards for use with Windows XP/Vista/7/8/10, Linux, VxWorks and Integrity
(318 Pages, 2 MB)
dataSIMS Avionics I/O Support
(21 Pages, 2 MB)
Test and Simulation Solutions Brochure
(4 Pages, 5 MB)
DDC Product Catalog
(84 Pages, 33.60 MB)
ARINC 429 Commercial Avionics Utilities for Windows. 60-day full functional trial (requires DDC hardware). (Note: Certain products are compatible with DD-42999S0 software.)
dataSIMS Software. 60-day full functional trial. This software can be configured for demonstration mode. (Note: Certain products are compatible with monitoring only versions of dataSIMS software.)
DD-42912/24M3-300 ARINC 429 PCMCIA Interface Card Order Info
Rev: F (1 Pages, 85 KB)
